Prismatic Lithium Battery Cell Stacking and Pressing Machine
Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is a comprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the know ledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Description
XW-PC12 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.
Features
- 7-inch touch screen with PLC for control, easy to operate.
- Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
- Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
- Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.
-
Stacking machine specification
| Item | Name | Parameter |
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precession pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
Stacking machine details
FAQ
Q1: Are your factory or trading company?
A: We are professional battery machine manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A:Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them
Product Tags:
|
|

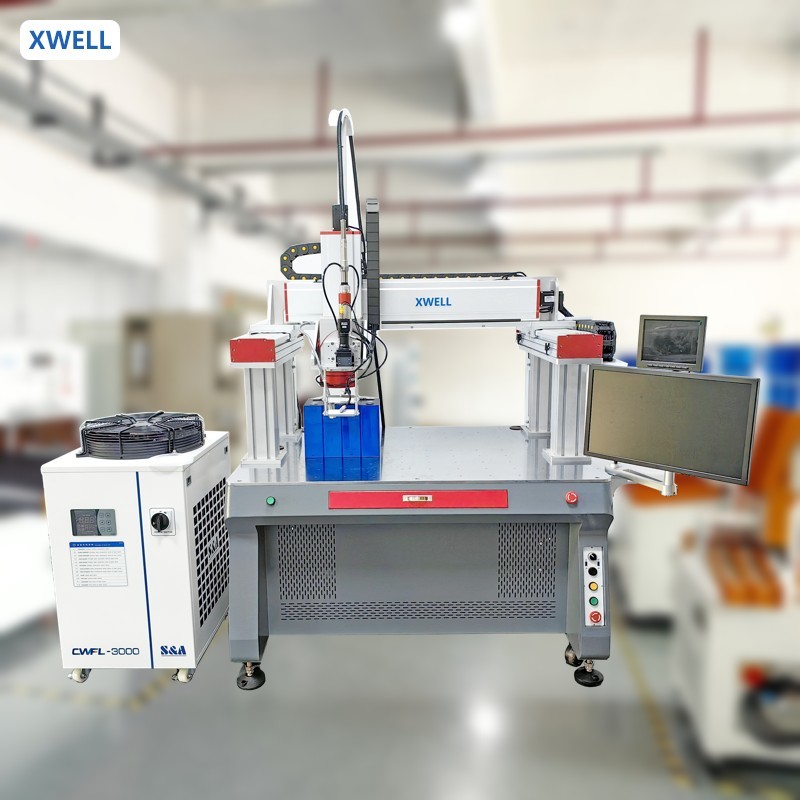

XWELL XW-PC12 Prismatic Battery Cell Stacking Pressing Machine Images
|
